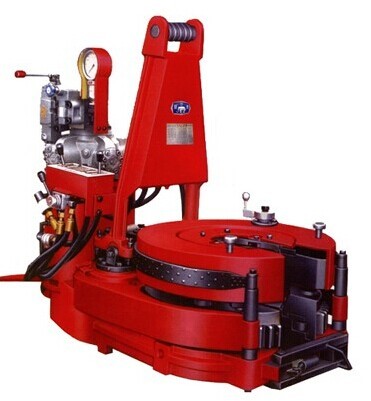

ZQ drill pipe power tong is ideal tool for oil & gas drilling, widely applied for makeup and breakout in offshore and onshore drilling operations and workover operations. Open head design of the ZQ series allows the tongs to disengage from drill string with high mobility. The tong is a combination of spinning tong and torque tong. The tongs are designed and manufactured according to API SPEC 7K “Specification for Drilling Equipments”.
SEPCIFICATION OF DRILL PIPE POWER TONG
| Model | Applicable pipe diameter | Max Torque | Tong Head (rpm) | Hydraulic | Shifting Distance | Rise and fall distance |
| mm | inch | KN.M | High Gear | Lower Gear | Pressure (Mpa) | Flow (L/min) | mm | mm |
| ZQ203-100 | 121-203 | 3 1/2 coupling | 8 body | 100 | 40 | 2.7 | 16.6 | 114 | 1500 | / |
| ZQ203-100II | 121-203 | 3 1/2 coupling | 8 body | 100 | 40 | 2.7 | 16.6 | 114 | 1500 | 0-430 |
| ZQ203-100III | 121-203 | 3 1/2 coupling | 8 body | 100 | 40 | 2.7 | 16.6 | 114 | / | 0-800 |
| ZQ203-125 | 127-203 | 3 1/2 coupling | 8 body | 125 | 40 | 2.7 | 20 | 114 | 1500 | / |
| ZQ203-125II | 127-203 | 3 1/2 coupling | 8 body | 125 | 40 | 2.7 | 20 | 114 | 1500 | 0-430 |
| ZQ203-125III | 127-203 | 3 1/2 coupling | 8 body | 125 | 40 | 2.7 | 20 | 114 | / | 0-800 |
| ZQ162-50 | 85-162 | 2 3/8 coupling | 5 body | 50 | 60 | 4.1 | 16 | 120 | 1000 | / |
| ZQ162-50II | 85-162 | 2 3/8 coupling | 5 body | 50 | 60 | 4.1 | 16 | 120 | 1000 | 0-440 |
| ZQ127-25 | 65-127 | 2 3/8 coupling | 3 1/2 body | 25 | 65 | 10.5 | 12 | 180 | 1000 | / |
